PicATU20B - IC-705 CAT-Interface

Andreas has already implemented a computer interface for the ICOM CI-V protocol for his antenna tuner.

I have built a Bluetooth interface into my tuner so that you can control the tuner very conveniently via the ICOM IC-705.

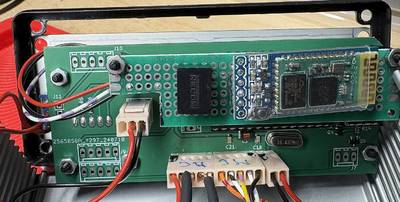

I have installed a standard HC-05 module from AZ-Delivery as the Bluetooth module.

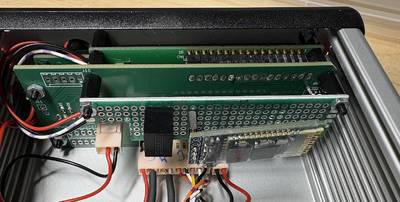

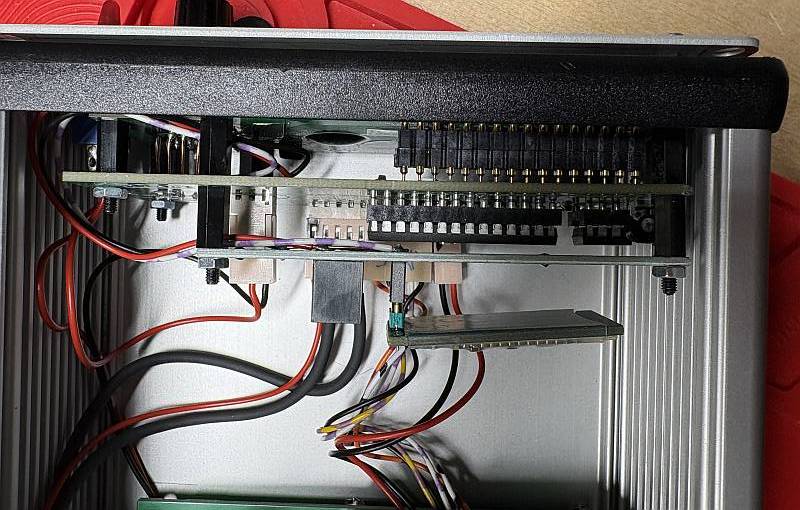

This is supplied with 5V= by a switching regulator. The module etc. is screwed directly onto the MC board as a small piggyback board.

The connection from the IC-705 to the tuner is very easy to establish via the IC-705 menu. If the tuner is switched on before the IC-705, the connection is even established automatically - what more could you want?
