QRP-Transceiver Penntek TR-35

I bought one of the last kits from WA3RNC ... more to come ...

IMG 9478

IMG 9479



First impressions

PROs CONs
No fiddling with menues Switches do not feel sleek
Compact but servicable WA3RNC decided to shutdown business due to age
AF output high enough to drive an external speaker
Clever construction with these two stacked PCBs
Well written manual
Excellent prepared kit. Each build-step has the parts in its own foil tube
Very effective manual AGC control
High RF power up to 9W
Starting at 10VDC input voltage the transceiver can deliver 5W on all bands

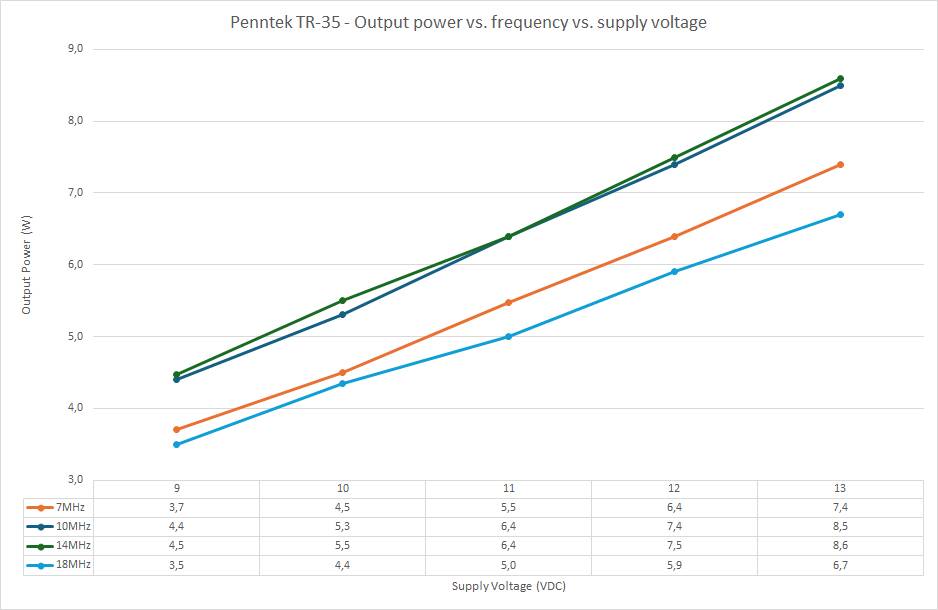

Power vs. Supply Voltagens

Clipboard01



Efficency

Below are some measurements of my device:

TR 35 Power
