With the firmware version 1.8.1 there are some minor enhancements:

  • Offset value is displayed on main screen. "O" at the end of the unit is removed
  • Waveform display also correct when offset is enabled

Here are the required files:

Installation

Sketch

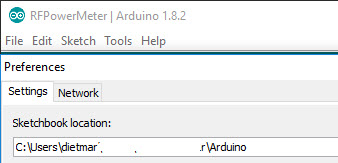

Copy the sketch to the Arduino sketchbook subdirectory. The folder can be located, using the "File/Preferences" window:

IDE 1

All files from the Sketch-ZIP file must be located in this subdirectory. The name of the subdirectory must match the name of the ZIP-file.

IDE 3

Libraries

Please copy the libraries into the library subdirectory of your Arduino IDE:

 IDE 1

The library folder is inside the "sketchbook location":

IDE 2

For each of the libraries, you must create a subdirectory and copy the files into this directory. The name of the subdirectory must match the name of the ZIP-files.

Nextion data

Please also upload the new HMI file to the display. For more information how to do this, please check this post.
